Glass Bottle IV Solution Production Line

2. Ultrasonic Bottle Washing Machine The ultrasonic bottle washing machines are mainly used for rough cleaning of 50 ml, 100 ml, 250 ml and 500 ml IV solution glass bottles. In addition, they can also be used for ultrasonic cleaning of similar bottles.
  The equipment will not start up or will automatically shut down if the water level is lower than the minimum standard water level, thus effectively protecting the ultrasonic generator.
  The ultrasonic bottle washing equipment adopts frequency conversion speed regulation.

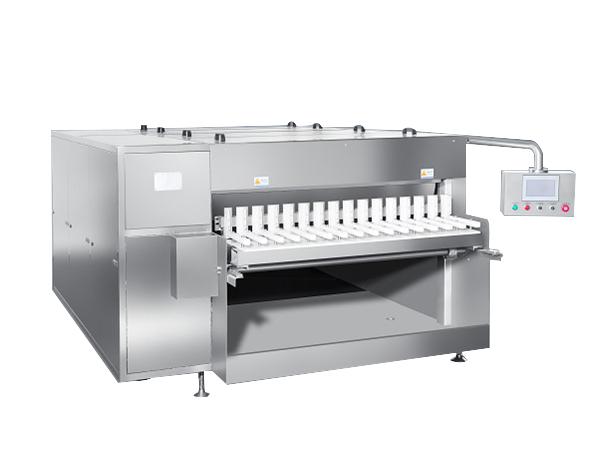

2. Fine Bottle Washing Machine The fine bottle washing machines are compact and space saving product. They are designed for fine cleaning of 50 ml, 100 ml, 250 ml and 500 ml IV solution glass bottles. These bottle washers can also be used to clean similar bottles.
  The fine bottle washing machine realizes a high level of automation. The water pressure and flushing time can be set according to user’s actual requirements. The flushing water at each stage is recycled and filtered for downgrade usage, which helps reduce water consumption.

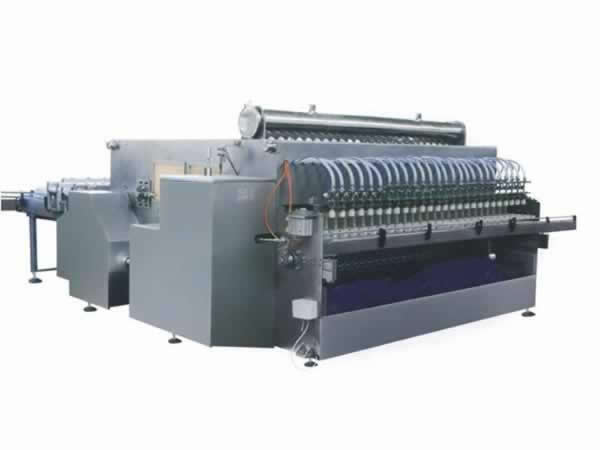

2. All in One Bottle Washing and Filling Machine After fine cleaning, the bottles immediately enter the filling station. This avoids the pollution caused due to long distance delivery of bottles.
  The filling machine adopts preset filling time and constant flow technique. The filling time and filling quantity are adjustable by the computer. Accurate measurement is achieved.
  The conveyor is on the side of the all in one bottle washing and filling machine, which contributes to convenient maintenance and repair.

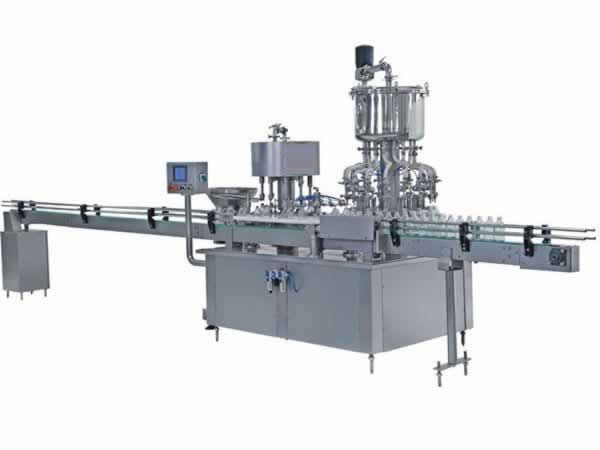

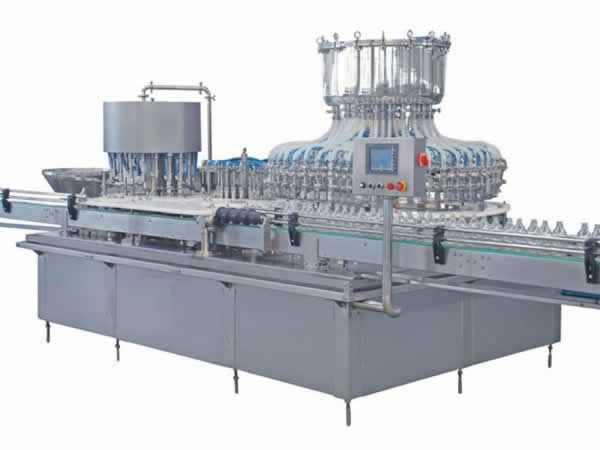

2. Liquid Filling and Stoppering Machine The liquid filling and stoppering machine is primarily used for glucose, antibiotics and other infusion liquids, which can complete filling and stoppering operations under room temperature and high temperature conditions. The liquid filling and stoppering machine adopts Germany GEMU pneumatic diaphragm valves for filling, ensuring high accuracy. In addition, it achieves No Bottle, No Filling, resulting in no waste of liquid.
  During filling process, there is no forced friction of mechanical parts, which prevents particulate pollution. This conforms to GMP requirements.

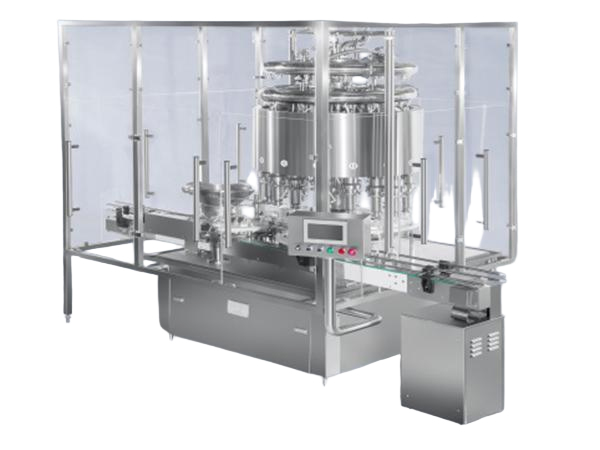

2. Liquid Filling, Nitrogen Filling and Stoppering Machine The liquid filling, nitrogen filling and stoppering machine is designed and made with hygienic and safety requirements in mind, meeting GMP requirements. During filling process, no forced friction of mechanical parts avoids particulate pollution. In addition, possible pollution caused by long distance delivery of infusion bottles is eliminated, as nitrogen filling is immediately performed after liquid filling and stoppering is instantly completed after nitrogen filling. Moreover, the CIP (clean-in-place), SIP (sterilization-in-place) unit enables the machine to be thoroughly, easily cleaned and sterilized.
2. Vacuum Nitrogen Filling and Stoppering Machine The vacuum nitrogen filling and stoppering machine is mainly used for vacuuming, nitrogen filling and stoppering of glass IV solution products. With a high level of automation, the equipment can adjust the vacuuming time, nitrogen filling time as well as the frequency of vacuuming and nitrogen filling according to the actual requirements.

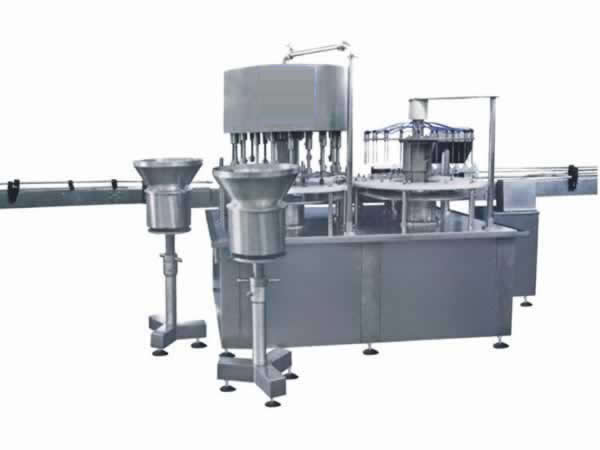

2. Nitrogen Filling and Stoppering Machine The NFS nitrogen filling and stoppering machine is designed for 50 ml, 100 ml, 250 ml and 500 ml glass IV solution bottles, which can complete nitrogen filling, automatic stopper adding and stoppering operations. The machine allows convenient change of infusion bottles in different sizes. This is because the bottle inlet screw with mobile structure can be easily replaced with screw of different specification by only removing and installing two M8 × 25 bolts.

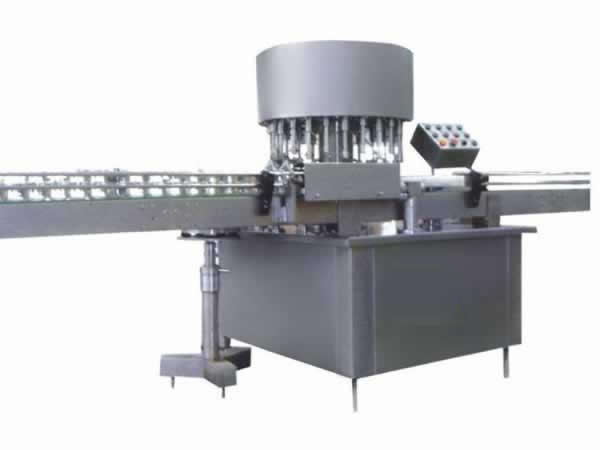

2. Glass Bottle Stoppering Machine The glass bottle stoppering machine is designed to perform T shape rubber stopper adding and stoppering operations for glass IV solution bottles. It is mainly used for 50 ml, 100 ml, 250 ml and 500 ml bottles. To make the machine flexibly adapt to bottles in different sizes, we use bottle inlet screw that adopts mobile structure and can be easily replaced with screw of different specification by only removing and installing two M8 × 25 bolts.

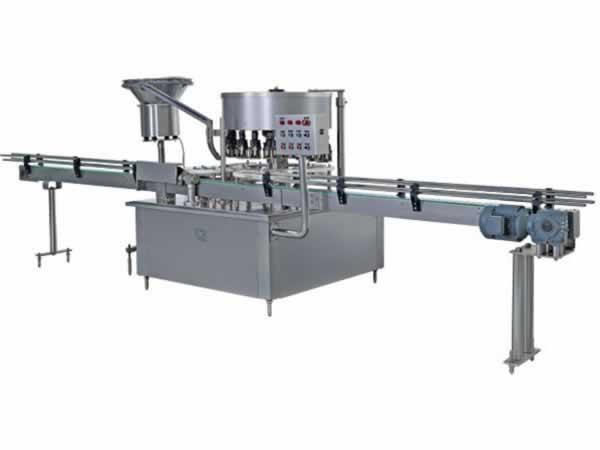

2. Bottle Capping Machine Our bottle capping machines use three knives to roll caps when bottlenecks are positioned and centered after cap loading. Good sealing quality is achieved. Our equipment adopts double frequency conversion control and stepless speed regulation. The knives realize soft boot with low mechanical impact force, which contributes to low breakage rate of bottles.

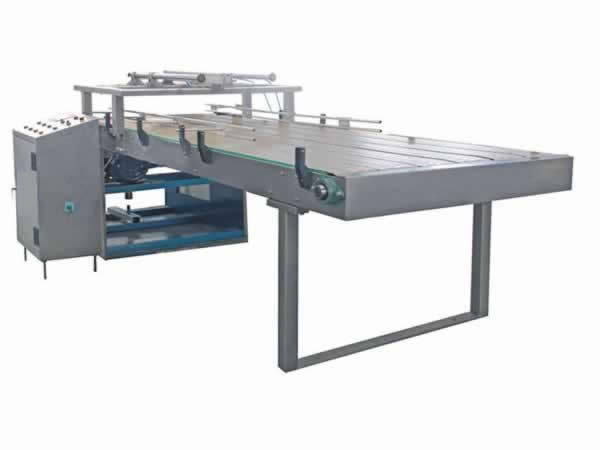

2. Glass Bottle Unscrambler The DSP100/500 glass bottle unscrambler is used to push IV solution bottles into the sterilizing cart after capping procedure. It consists of bottle pushing section and bottle storage section. With a high level of automation, the bottle unscrambling machine can automatically and reliably perform bottle pushing and lifting operations
  .Applicable size: 150 ml, 250 ml, 450 ml, 550 ml
  Capacity: 80-120 bottle/min

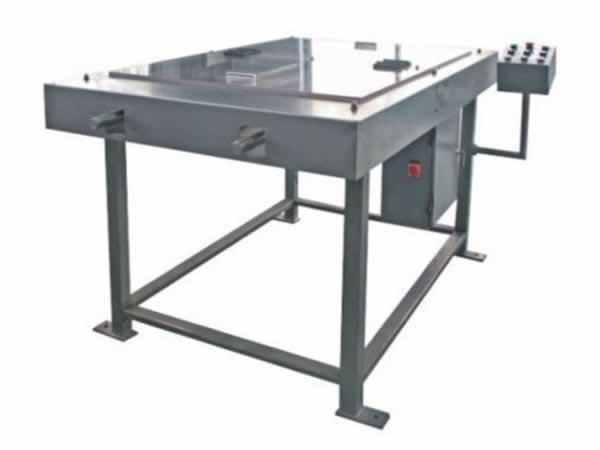

2. Glass Bottle Unloading Machine The XP100/500 glass bottle unloading machine is mainly used to automatically unload and convey the IV solution bottles from the sterilizing cart to a bottle collating table.
  Applicable size: 100 ml, 250 ml, 500 ml
  Capacity: 20-50 bottle/min
  Electric capacity: 4.5 kW 380 V 50 Hz

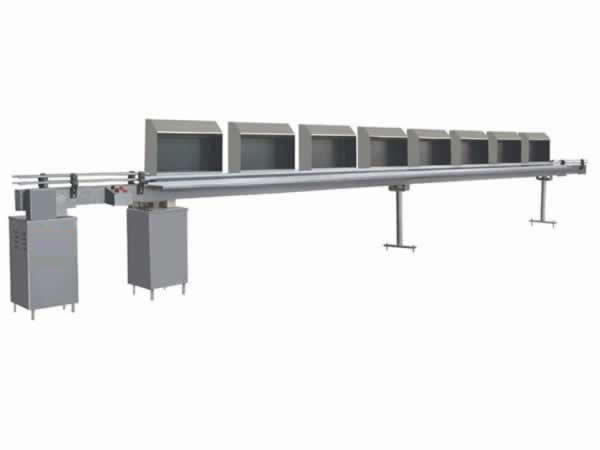

2. Bottle Lamp Checking Machine The SDJ450 bottle lamp checking machine is used to conduct lamp checking on glass IV solution bottles after bottle sterilizing. The number of lamp checking stations is based on the production line capacity. The lamp inspection equipment is suitable for 50 ml, 100 ml, 250 ml and 500 ml bottles. With a wide range of capacities from 30 to 600 bottles per minute, the machine can suit customers' diverse requirements. The electric capacity is 3.3 kW.

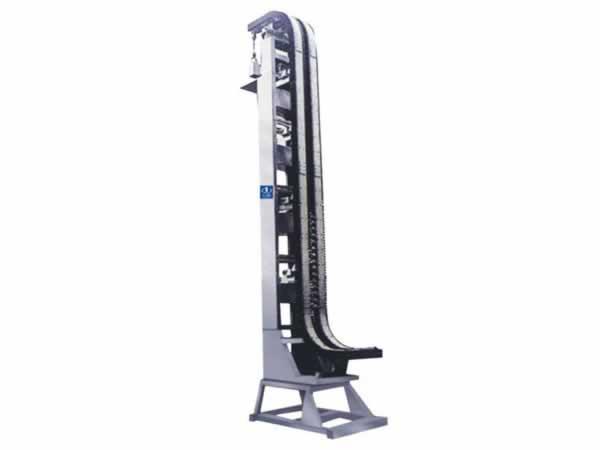

2. Vertical Bottle Conveyor The USCP450 vertical bottle conveyor is intended for vertically conveying containers such as IV solution bottles, cans, and so on. It can be used in combination with other bottle conveying equipment.
  Capacity: 120-450 bottle/min
  Max. lifting height: 10 m
  Electric capacity: 4.0 kW

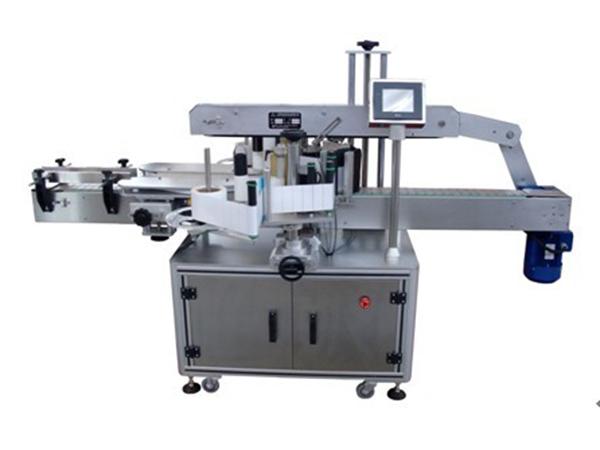

2. Linear Labelling Machine The linear labelling machine can automatically complete many procedures such as bottle conveying, glue application, label sending, label picking, batch number printing and labeling, helping reduce labor intensity. Typical advantages this labeling equipment offers include high labeling reliability and accuracy, no bubbling, high efficiency and easy operation. When there is no bottle, the machine will automatically stop performing label sending, label picking, batch number printing (only for TZ200) and labeling operations.

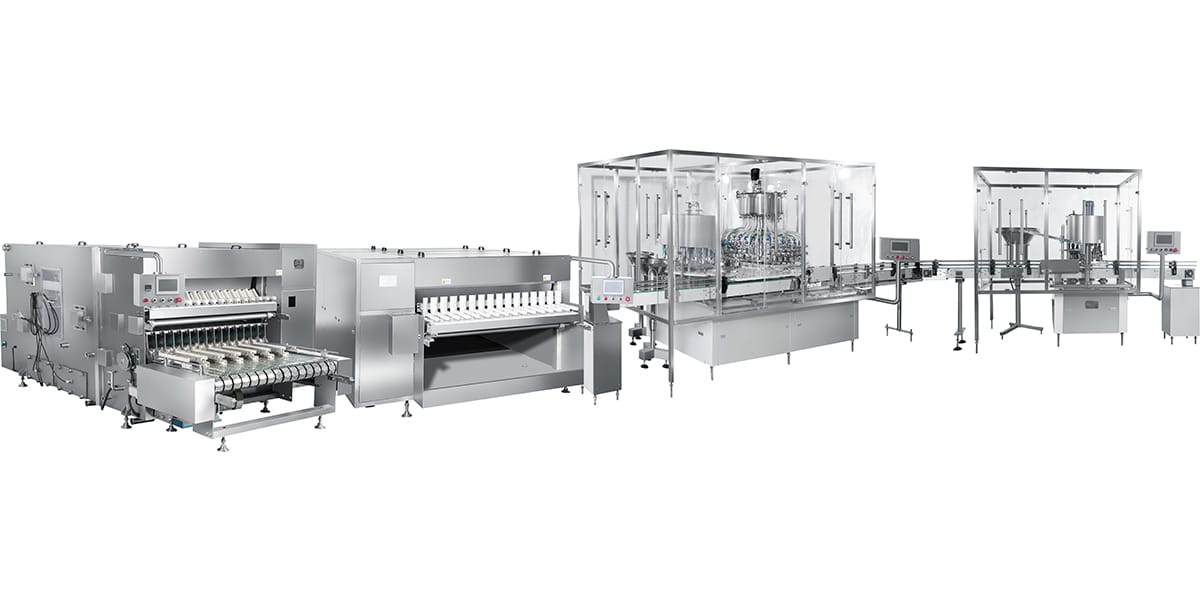

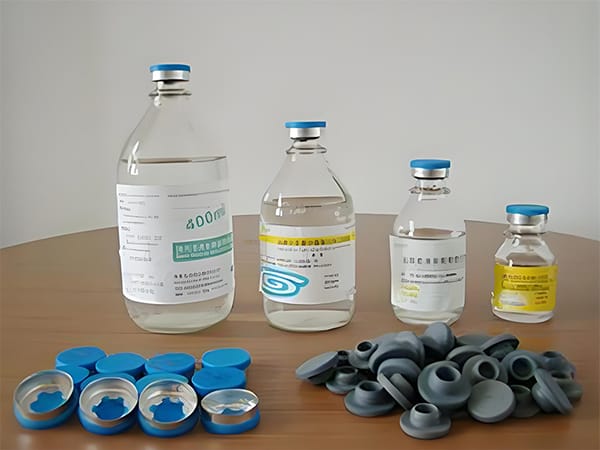

Designed mainly for 50 ml,100 ml, 250 ml and 500 ml IV solution bottles, the glass bottle IV solution production line can perform a variety of procedures, such as ultrasonic rough washing, fine washing, liquid filling, nitrogen filling, stoppering, capping, bottle unscrambling, bottle unloading, lamp checking and labeling. In addition, the production line can also be used to complete washing, filling and sealing procedures for the production of other liquid medicine like tincture water.

Main Technical Parameters

Model	BPY50/500-120	BPY50/500-200	BPY50/500-300	BPY50/500-600
Applicable bottle size	50 ml, 100 ml, 250 ml, 500 ml
Capacity	80-120 bottle/min	120-200 bottle/min	200-300 bottle/min	300-600 bottle/min
Electric capacity	35 kW	37 kW	45 kW	55 kW
Pressed air consumption	4 m³/h (0.6MPa)	5 m³/h (0.6MPa)	6 m³/h (0.6MPa)	7 m³/h (0.6MPa)
Water consumption	Ordinary water: 200 ml/bottle Purified water: 80ml/bottle Injection water: 100 ml/bottle 0.2 MPa
Outer dimension (mm)	17800X6000X2300	19000X6000X2300	24000X7000X2300	24000X7000X2300

Note:
① In the above table, the capacity is inversely proportional to the bottle size. Hence, the bigger the bottle size, the lower the capacity. The specific details are correct based on the tender documents.
② The outer dimension in the table can be adjusted by changing the laying style of the washing machine, so as to accommodate the actual workshop size.

The glass bottle IV solution production line is manufactured with hygiene, safety and durability in mind. The main structure adopts 304 stainless steel. The hard tubes and hoses that come into contact with liquid medicine are respectively made from 316L stainless steel and special silicone.

Based on multiple patented technologies, the glass bottle IV solution production line realizes the integration of mechanics, electronics and pneumatics, and provides functions like digital display, human-machine interface, automatic computer control, automatic protection. Additionally, our focus on product improvement and innovation has resulted in the pharmaceutical equipment offering many advantages, including high production capacity, great reliability, easy operation and convenient maintenance.

Performance Characteristics

The whole glass bottle IV solution production line has all sections connected in series. There are buffer zones between sections with different clean level, and bottle conveyor doesn't span two sections. This helps make the production line meet GMP requirements.
The rotary drum style bottle washing machine effectively avoids unstable bottle clamping, bottle dropping caused by vertical bottle washing. In addition, rough washing and fine washing are totally separated, resulting in no cross contamination.
The adoption of ultrasonic cleaning removes bristle falling out, bottle breakage, dead corner problems that brush cleaning may have. In addition, bottles are soaked longer in the ultrasonic water tank and are better cleaned.
The water pressure and flushing time can be adjusted according to the actual demand. Moreover, the flushing water at each stage is recycled and filtered for downgrade usage. All of this enables users to reduce water consumption.
The filling time and filling quantity can be preset and adjusted by the computer, ensuring accurate measurement. In addition, CIP (clean-in-place) and SIP (sterilization-in-place) functions are available.
The glass bottle IV solution production line combines the filling section with the stoppering section. After filling, the IV solution bottles immediately enter the stoppering station, which not only avoids possible pollution caused by long distance delivery but also reduces operators and the clean area.

As a professional glass bottle IV solution production line manufacturer and supplier in China, we also offer non-PVC infusion bag IV solution production line, medical injection bottle washing drying sealing production line, pre-sterilized syringe filling and sealing machine, and much more.
