Smart packaging and storage systems are extremely useful in efficiently managing finished products and significantly saving on labor costs, making them ideal for storing pharmaceutical products. Pharmaceutical companies are increasingly choosing smart packaging and storage systems to store their medicines and other products.

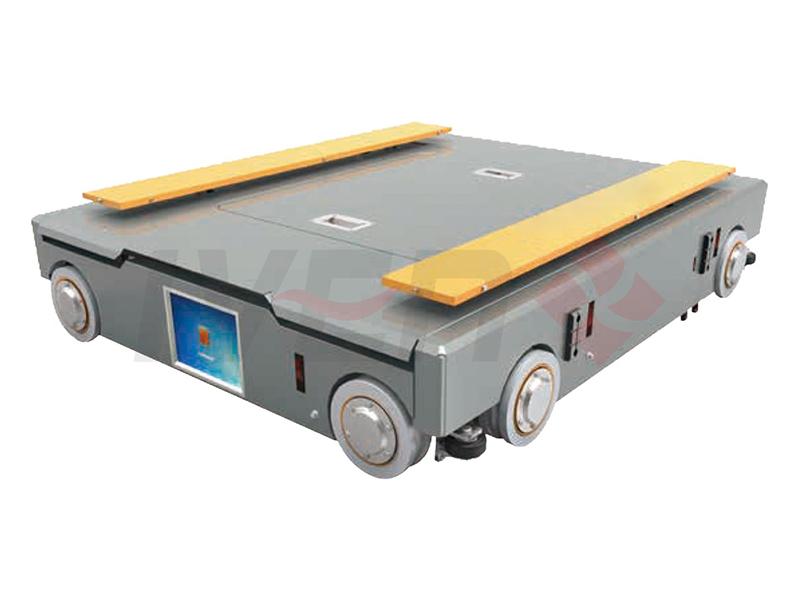

Smart 4-way shuttle robot

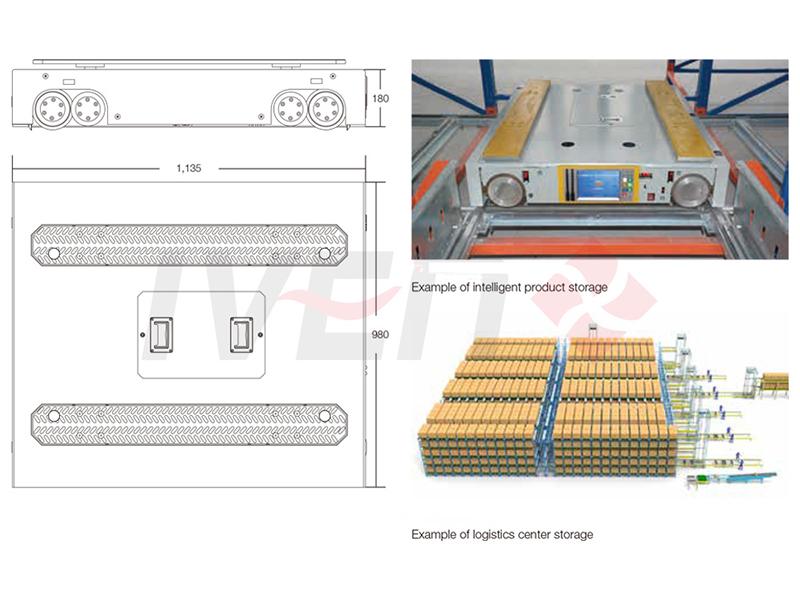

The smart four way shuttle robot is a versatile, high tech packaging and storage equipment piece capable of performing four direction conveying, in-place rail changing, automatic transferring, intelligent monitoring, and dynamic transportation management.
Main features
Integrated storage and transferring
Smart four-way shuttle robot can moves under the cargo and change rail in-place at the rail crossing. It can transfer the goods from storage location to designated location at one time, with no secondary handling.
Intelligent dynamic transportation management
Smart shuttle robot has its own control system and built-in warehouse map, which enables the automatic recording and feedback of information, autonomous optimization and updating of routines, as well as real-time feedback of storage space and equipment status.
Modular configuration
The inside control parts adopt modular and pluggable design, easy for changing and maintenance.
Compact storage
Single-layer storage layout realizes the combination of different deep bits and provides optimal storage solutions for the complicated quality and specifications of goods.
Three-dimensional layout
Based on different warehouse heights and good heights, different storage layers can be designed. Three-dimensional smart compact storage is also available even in low storage region.
Expansibility
The amount of adopted equipment can be adjusted according to the inbound and outbound efficiency. The existing project can be expanded later under the premise of not affecting the using, which features short construction period.
Applications
Storage area in intelligent workshop
Smart warehouse for compact finished products/semi-finished products\raw materials
Warehouse in logistic transfer center
Unmanned warehouse
Technical spec
Model
Rated load capacity
No-load speed
Full-load speed
undefinedLoad surfacelength
Load surfacewidth
Thickness
Power supply
Duration
Charge mode
IV-247-P/T
0.8 T
1.2 m/s
1.0 m/s
1200-1400mm
800-1200mm
247mm
48V/40AH
6-8h
Automatic charging
1.2 T
1.0 m/s
1.2 m/s
1200-1400mm
800-1200mm
247mm
48V/40AH
2-3h
IV-180-P/T
1.0 T
1.5 m/s
1.2 m/s
1200-1400mm
800-1200mm
180mm
48V/40AH
6-8h
1.5 T
1.2 m/s
1.0 m/s
1200-1400mm
800-1200mm
180mm
48V/20AH
2-3h
1.5 T
1.2 m/s
1.0 m/s
1600-2100mm
800-1600mm
180mm
48V/40AH
6-8h
2.0 T
0.8 m/s
1.2 m/s
1600-2100mm
800-1600mm
180mm
48V/20AH
2-3h

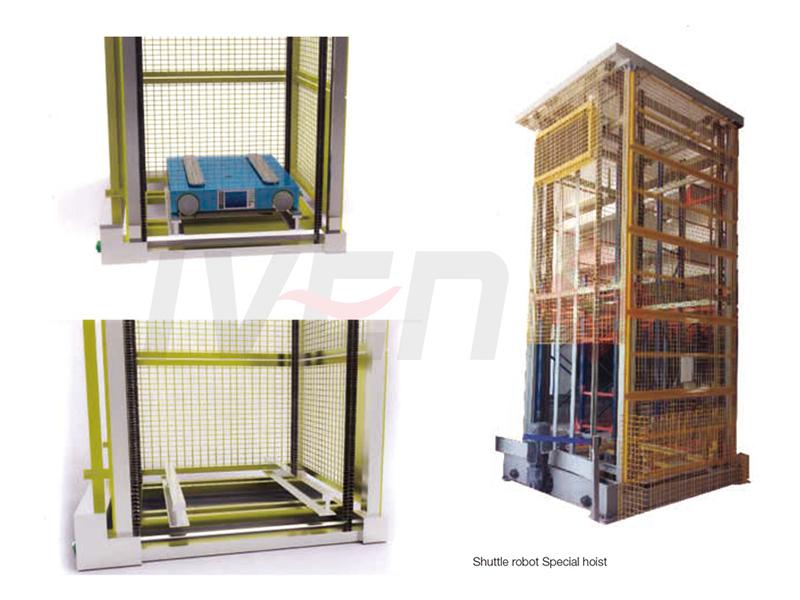

Special hoist for shuttle robot
Special hoist for shuttle robot is a new type conveying appliance, specially designed for lifting goods and layer changing of smart four-way shuttle robot. It is able to transfer materials vertically and continuously, ensuring that shuttle robots in different layers can maintain continuous logistic transportation.
Main features
Single-way, two-way and three-way hoist is available based on actual conditions.
Modular assembly mode greatly saves the design space.
This hoist can interface with both shuttle robot and goods, providing high transfer efficiency and suitable for high speed convey.
It can match the conveying equipment to make the whole conveying process fully automatic, avoiding the instability from manual operation.
The terminal can communicate with the warehouse control software WCS without hindrance, integrating the whole production process. It is also helpful to incorporate the temporary storage zone, production area, storage and transfer system, facilitating the production planning and information transfer.
Parameters
Weight
Max. Load capacity
Speed
Size
Positioning mode
Positioning accuracy
Control mode
Operating temperature
2.0 T
2.5T
≥0.6 m/s
Customizable based on customer needs
Bar code
±5mm
Vector frequency conversion
-30℃~45℃
Control system

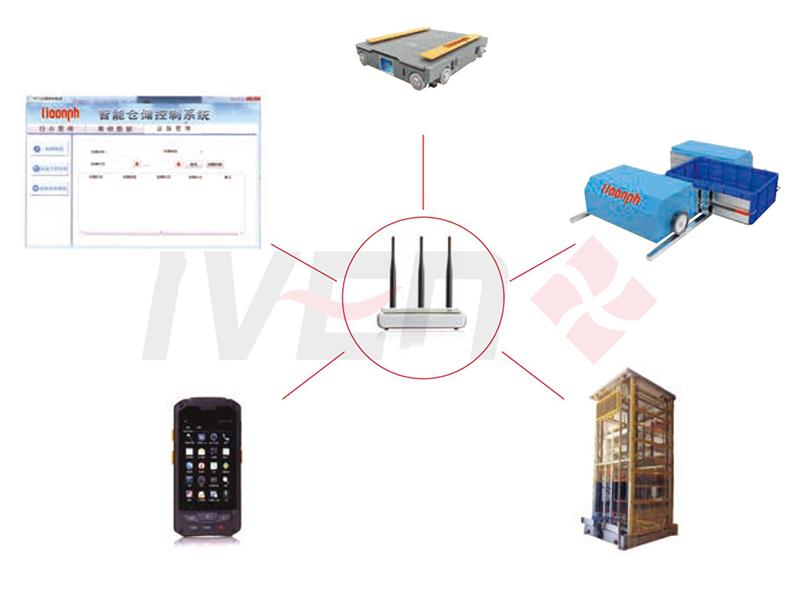

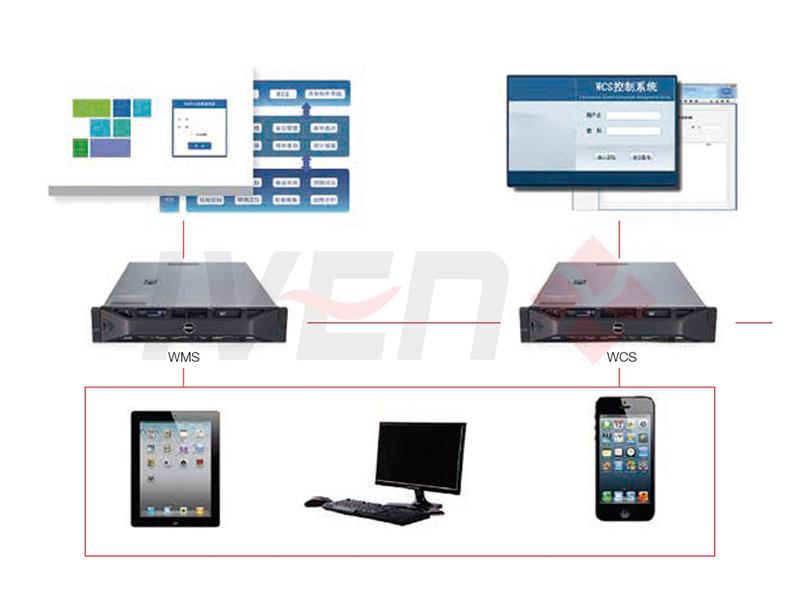

Warehouse control system adopts WCS+WMS+system information interactive mode, capable of managing and driving all the semi-automatic and automatic equipment in the warehouse including logistic robot, lifting machine, conveyor system, forklit, camera system, etc. WCS human-computer interface can timely display real-time status and task execution of every equipment. Operators can operate intuitively within competence extent.
Main features
Real-time update and visual management of equipment and good allocation.
Control system supports task ranking setting, task issuing in batches and automatic outbound after optimization.
Control system enables flexible scheduling and cooperative working of multi-devices.
Platform-level control is available. Simultaneous remote-monitoring of multiple WCS platform is realizable.

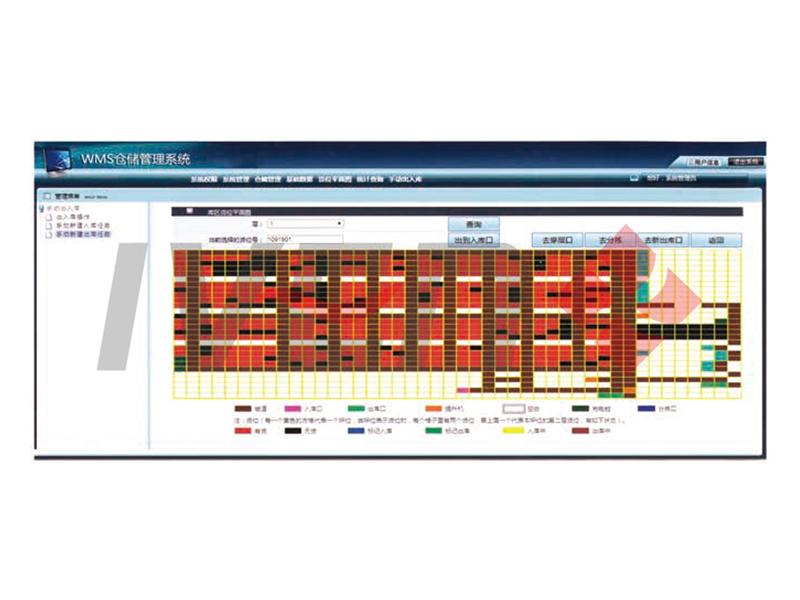

Warehouse management system
Warehouse management system can provide product storage strategy, set the warehousing process, manage storage of goods, efficiently follow up and control the logistics and cost of the whole warehouse business, and achieve perfect warehouse informatization management. It can also interface with ERP and MES system to exchange data and provide comprehensive information on enterprise business process and financial management.
Functional module
Inbound and outbound services
Warehouse allotting
Virtual warehouse management
Integrated batch management
Three-dimensional goods allocation
Stocktaking
Real-time stock control
Seamless interface
Main features
Warehouse management system supports multi levels of management on warehouse, zone, good allocation, etc. It also provides batch management about warehouse goods and supports several unit of measurement, allowing automatic conversion of different units.
Warehouse management system can record the current amount of stock goods and historical information, as well as the searching the historical records of inbound and outbound goods of any previous stage.
Stocktaking, adjustment of inventory shortage and overage are available.
Mluti-condition inquiry can be carried out to get comprehensive and first-hand inventory information.
Warehouse management system can interface with EPR, MRP and WCS software, helping to improve the depth and breadth of business management.

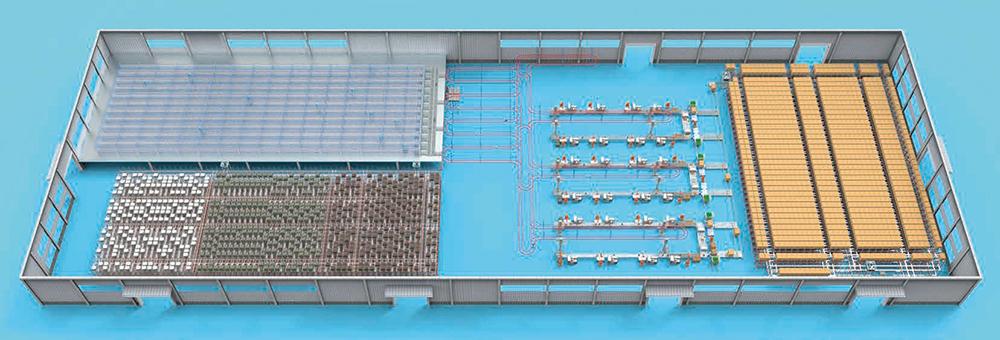

Smart compact storage system
Based on customers’ actual demands and existing informatization platform, IVEN realizes informatization, standardization, visualization, intelligence and automation of warehouse management by adding hardware and deepening message scheduling. Smart compact storage system is supported by informatization platform and hardware facilities, gives priority to inbound and outbound goods and material transfer. This achieves flexible scheduling of storage, conveying, information, personnel and other sources and realizes intelligent operation and management of factory.
Smart internal logistic system
Smart internal logistic system is a new smart conveyor system designed based on our previous technology. It breaks the traditional conveying means to transfer goods in high altitude orbit.
Main features
Smart management of conveyor line.
Air transportation takes no floor space in the production area.
Smart shuttle robot can travel to any locations of the production line to achieve flexible transfer.
Intelligent managed conveyor system allows the robot to automatically transfer from temporary storage zone to production line.
Overhead transportation occupies no floor space of the production zone.
Shanghai IVEN Pharmatech Engineering Co., Ltd, established in 2005, has been engaged in pharmaceutical machinery since then. IVEN is a leader in China to provide turnkey solutions to worldwide pharmaceutical company and medical treatment and public health industries by following EU GMP, US FDA and WHO standards.
