Pharmaceutical Processing Equipment

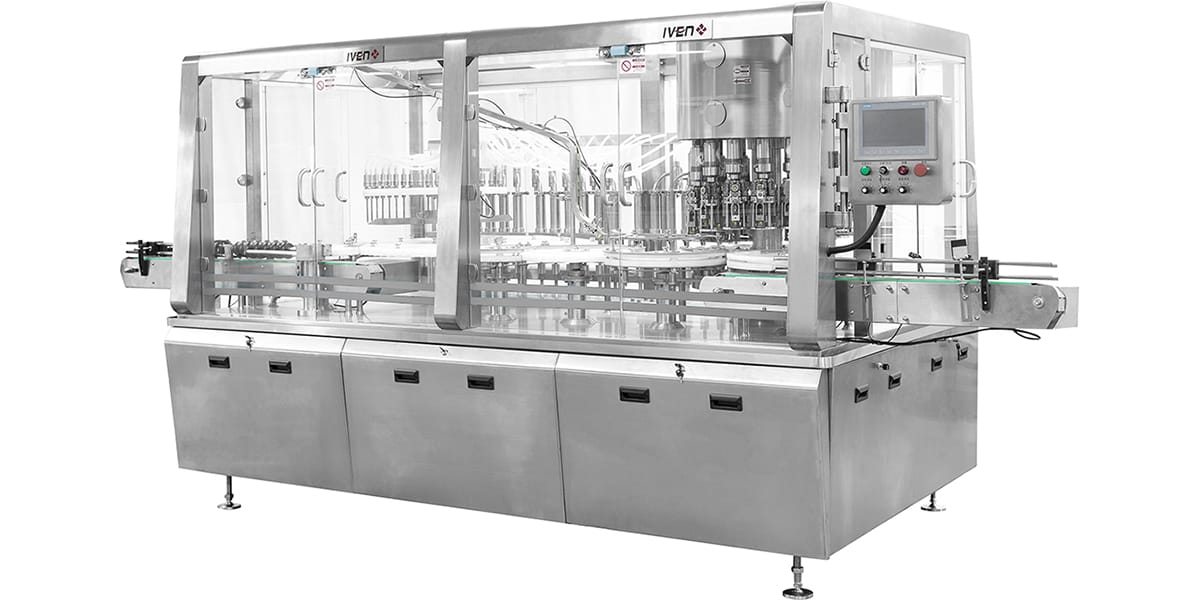

Oral Liquid Washing, Drying, Filling and Sealing Production Line

BXKF5/25 oral liquid washing, drying, filling and sealing production line is mainly composed of three single machines, including an ultrasonic washing machine, an sterilization and drying machine and an oral liquid filling and capping machine. These machines can be used separately or used in combination with each other to realize linked production.

Thanks to the efforts of our R&D staff, the production line has achieved an internationally advanced level. Some of advantages it offers include reasonable structure, high level of automation, stable and reliable operation, high efficiency, mechanical and electrical integration. In addition, the machine is mainly made of stainless steel 304, special parts are manufactured using stainless steel 316L, and the exterior material is imported stainless steel that undergoes sanding or matte treatment. This enables our washing, drying, filling and sealing production line to provide elegant appearance, good durability and meet GMP requirements.

• Max capacity: 400 bottle/min
• Applicable size: 5-25ml oral liquid bottle
• Bottle diameter: 16-28 mm
• Max bottle height: 70 mm
• Bottle clarity qualification rate: ≥99.5 %
• Bottle breakage rate: less than 0.2 %
• Sterilizing temperature: 300-350 ℃ (adjustable)
• Cleanliness class of laminar flow: class 100
• Sealing qualification rate: no less than 99 %
• Filling quantity error: meet the requirements of Chinese Pharmacopoeia of 2010 edition
• Electric capacity: 85 kW
• Outer dimension: 10100 mm×2500 mm×2500 mm
• Total weight: 7000 kg

IVEN Pharmatech is a professional oral liquid washing, drying, filling and sealing production line manufacturer in China. Our company also provides glass ampoule ultrasonic cleaning machine, fine bottle washing machine, co-extrusion non-PVC IV bag film production line, and more.
