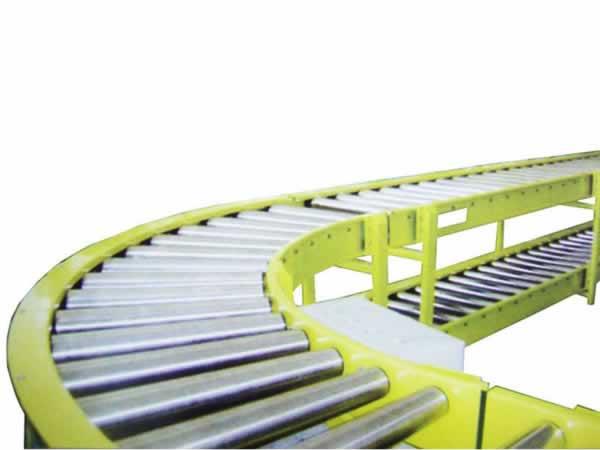

The carton roller conveyor is suitable for conveying a variety of cartons, bags, trays, etc. It can handle single piece item with large weight. Featuring great conveying capacity, high speed and good durability, the roller conveyor is a good choice for customers.
| Model | W□-R□ |
| Mode of driving | Single chain driving (W1 type); Double chain driving (W2 type) |
| Roller specification | Roller outer diameter: φ50, φ60; Tapered roller outer tube diameter: φ52-φ109.6 (min.-max.) |
| Roller spacing | Standard: 75, 100, 150 |
| Conveying angle | 45°, 60°, 90° (swerving) |
| Conveying speed | Max. 25 m/min |
| Power (kW) | 0.4, 0.75 |
Note:
1. W is the length of roller, R is the radius of swerving (remove without swerving, R is 500 in the above table). Specific parameters can be customized.
2. Frame material and height are also customizable.
As a specialized carton roller conveyor manufacturer and supplier in China, IVEN Pharmatech also provides gas bag gripper automatic carton packing machine, sterilizing dryer and vial capping machine, among others.
We ensure strict quality control for pharmaceutical machinery, complying with ISO9001:2008 and adhering to cGMP, European GMP, US FDA GMP, and WHO GMP standards.
Our equipment is designed to meet diverse production needs, including non-PVC soft bag, PP bottle, and glass bottle IV production lines, as well as automatic ampoule and vial washing, filling, and sealing systems. We also offer solutions for oral liquid processing, dialysis fluid filling, and pre-filled syringe filling and sealing.
