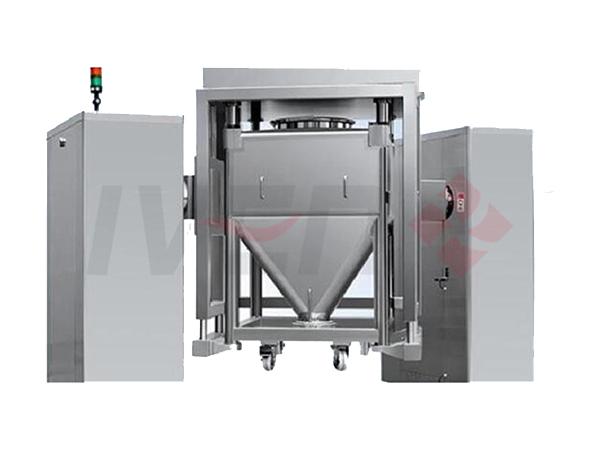

Continuous Powder Blending

Continuous Powder Blending

Continuous powder blending machine is perfect to mix different components of powder-powder or powder-granules. It can be applied in pharmaceutical industry. This machine is versatile to mix drugs of different components and different batches following technological requirements.

Request a Quote
Technical specs
Model IV-100 IV-200 IV-300 IV-400 IV-600 IV-1500
Max. Hopper volume (L) 100 200 300 400 600 1500
Max. Loading volume (L) 80 160 240 320 480 1200
Max. Loading capacity（kg） 50 100 150 200 300 750
Mainshaft speed (rpm) 3-20 3-20 3-20 3-15 3-15 3-10
Total motor powder (kW) 1.5 3 3 5.2 5.2 6.2
Weight (kg) 600 800 1000 1200 1400 2000
Overall size (L*W*H) (mm) 2300*1500* 1500 2500*1800* 2000 2500*1900* 2100 2600*2100* 2300 2800*2300* 2500 3200*2800* 2800
Main features
  • Continuous powder blending machine has functions of automatic lifting, blending and lowering. Different sizes of hoppers can be chosen for different mixing applications.
  • The symmetry axis of hopper and rotation axis of revolving arm forms an angle to allow material mixers for 3-dimentional movement in the closed hopper. In this case, strong overturn and altitudinal shear, causing the optimal mixing effect.
  • The powder blender has compact structure, high degree of mechanical-electrical integration, simple control and convenient adjustment of technological parameter. It adopts PLC control, hydraulic lifting and hydraulic drive.
  • With a volume loading coefficient of 0.80, the blending uniformity reaches over 99%. Hopper is smooth inside and outside without dean angles, which avoids the cross-contamination between materials and meets GMP standard.
